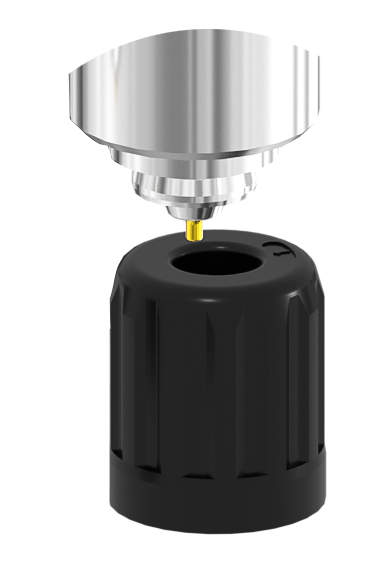

Photovoltaic Connector Nuts

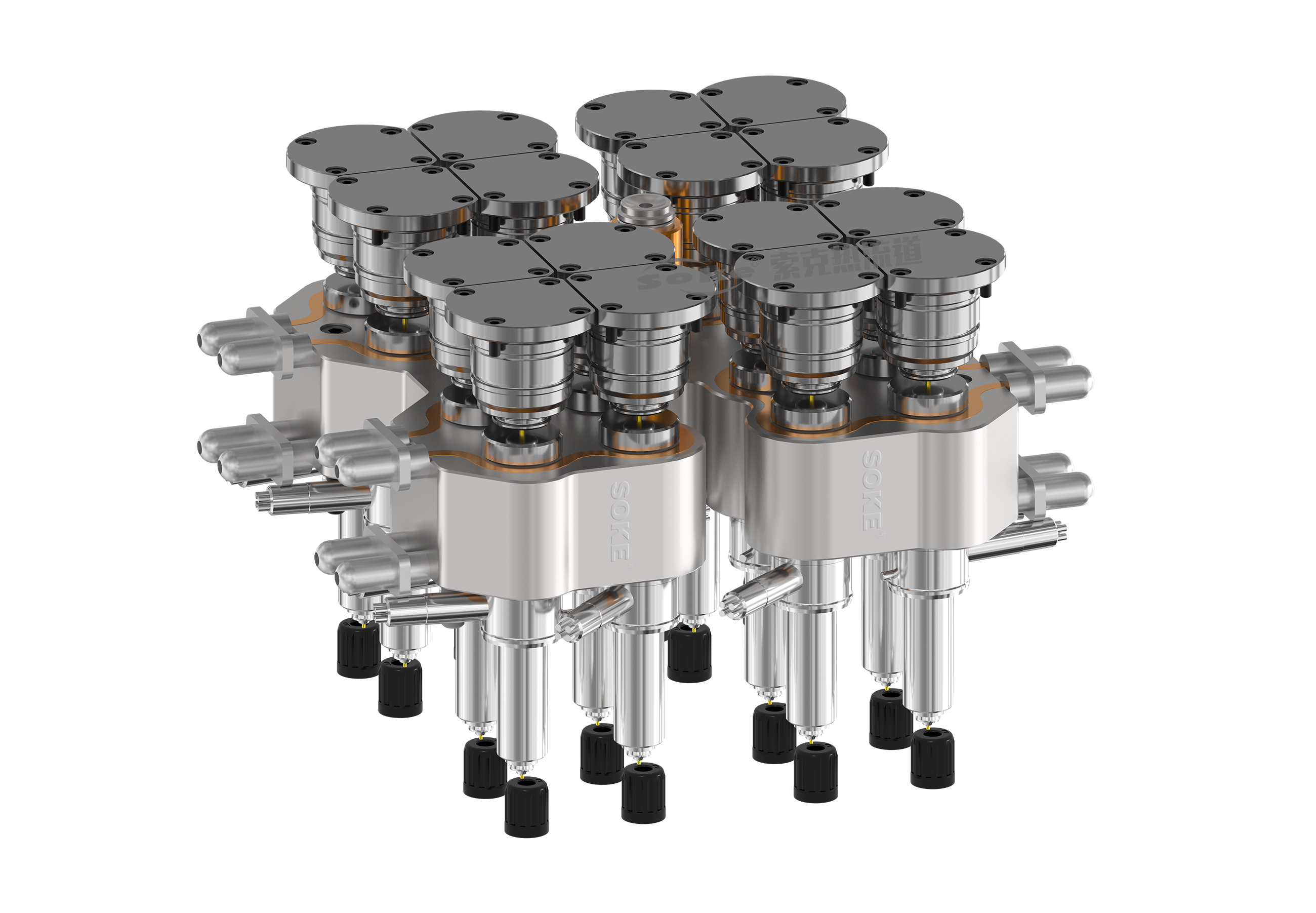

Valve Gate Hot Runner System (16 Drops)

Product Parameters

Material：PA66

Mold temp.：80 ℃

Molding temp.：275 ℃

Product weight：2.9 g

Product Description

The product has no shrinkage, strain, or spray marks. It is directly injected into the product surface and has no water outlet. The double layer insert adapter of the splitter plate  connects the flow channel, reduce pressure loss at the corner of the flow channel, adopt fluid polishing treatment, make the flow channel smooth and eliminate dead corners and shear. Accurate heat ratio of the heat pipe of the splitter plate, positive and negative temperature sensing, ensure dual balance between the flow channel and heat to achieve stable production.
