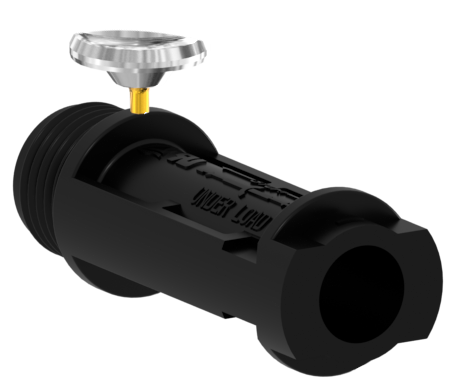

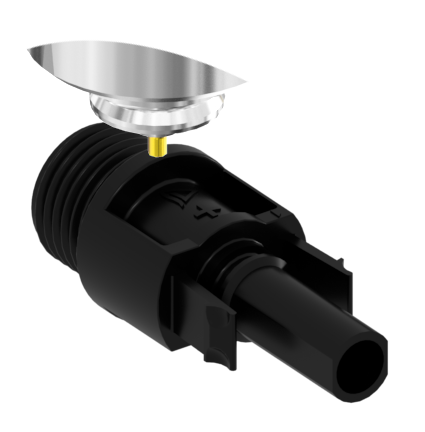

Photovoltaic Connectors

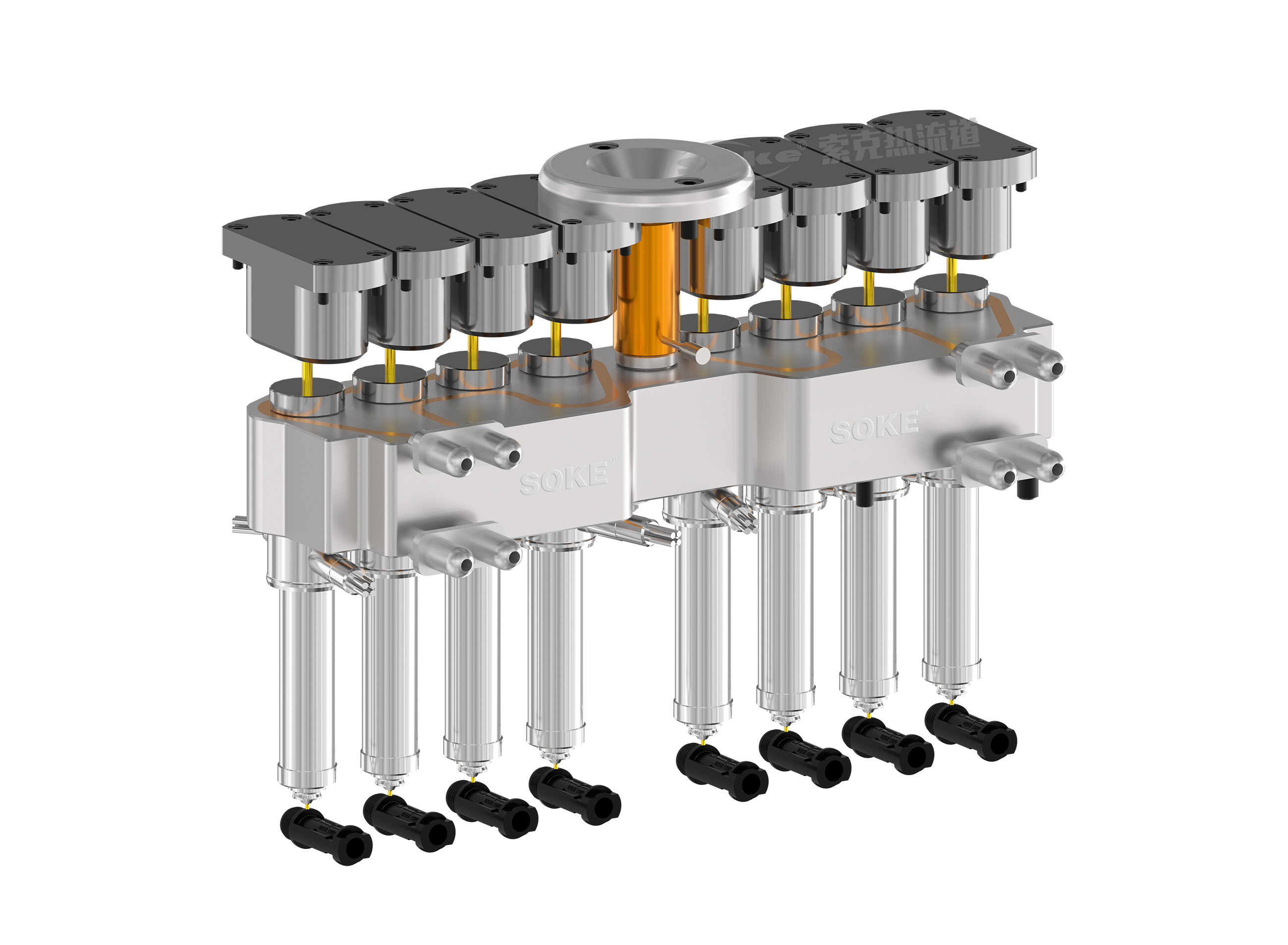

Valve Gate Hot Runner System (8 Drops)

Product Parameters

Material：PPE (PPO)

Mold temp.：60-100 ℃

Molding temp.：320 ℃

Product weight ：7 g

Product Description

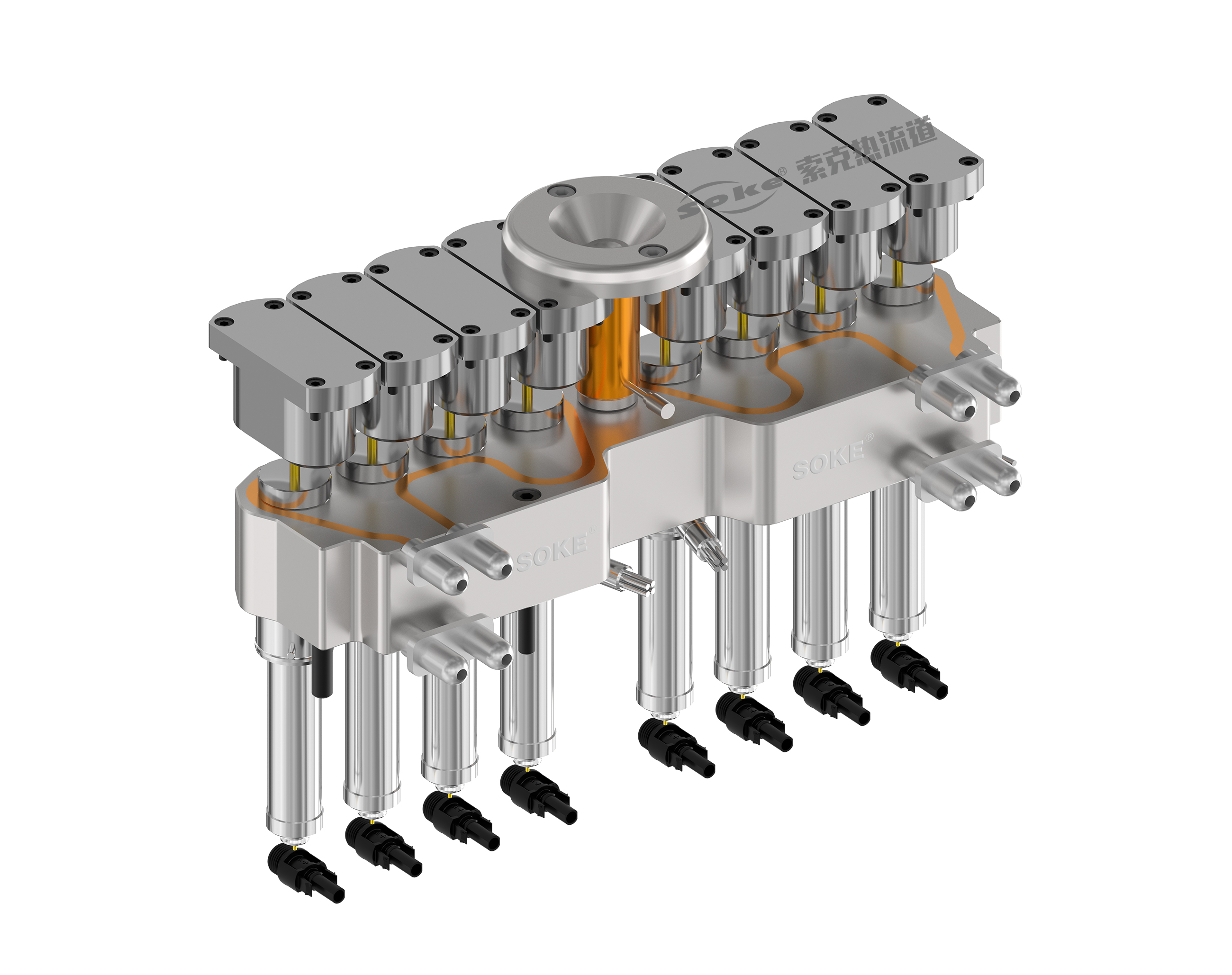

Special product structure，arranged compactly all hot runner，adopt a U-shaped flat pneumatic cylinder to ensure smooth valve needle operation. The splitter plate is made of Swedish imported materials with high wear resistance and corrosion resistance, and the temperature difference between each hot nozzle is controlled within plus or minus 5℃. The insert transfer controls the balance of the flow channel, thereby achieving dual balance of the flow channel and heat.
