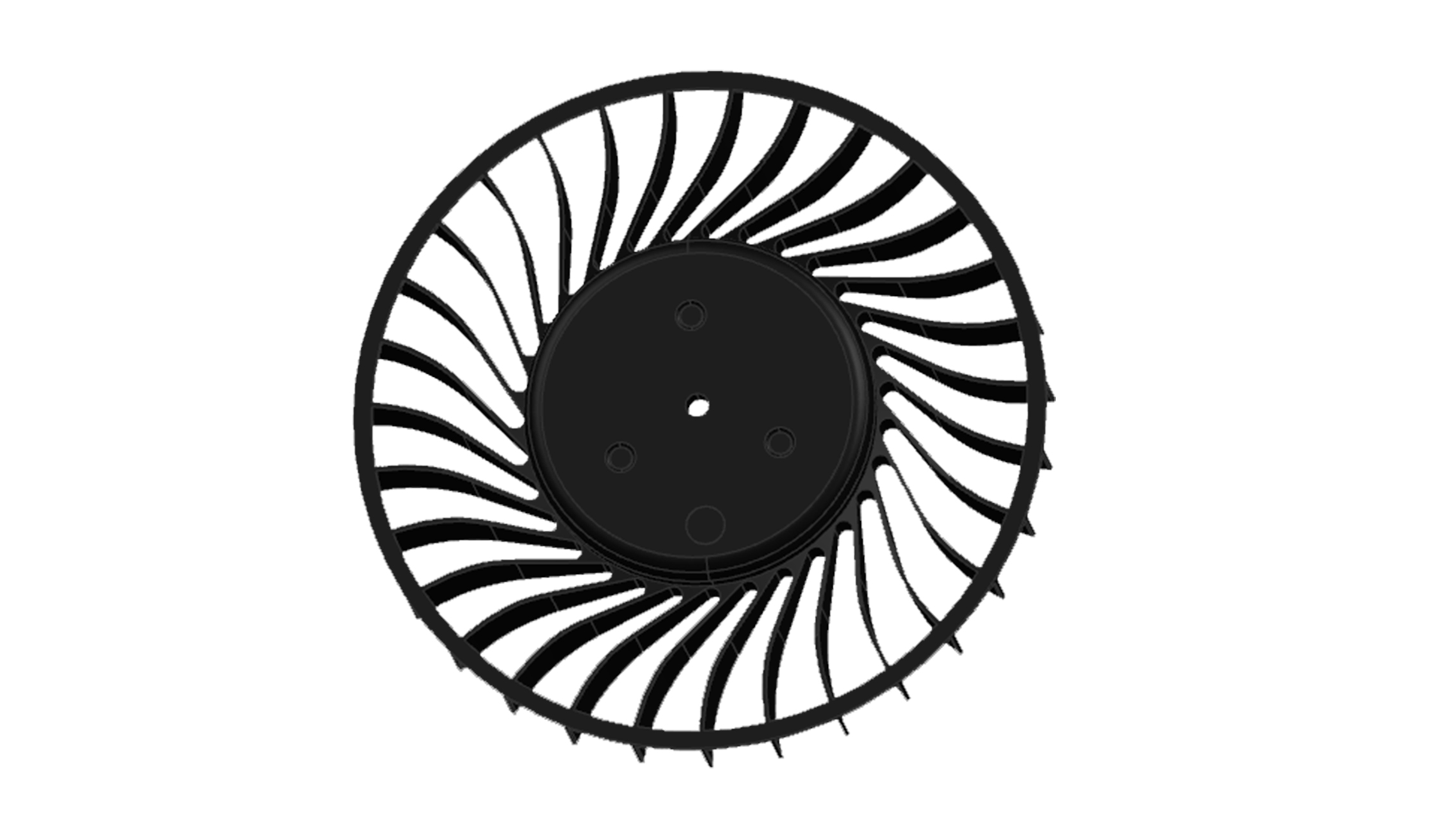

Notebook Fan Blade

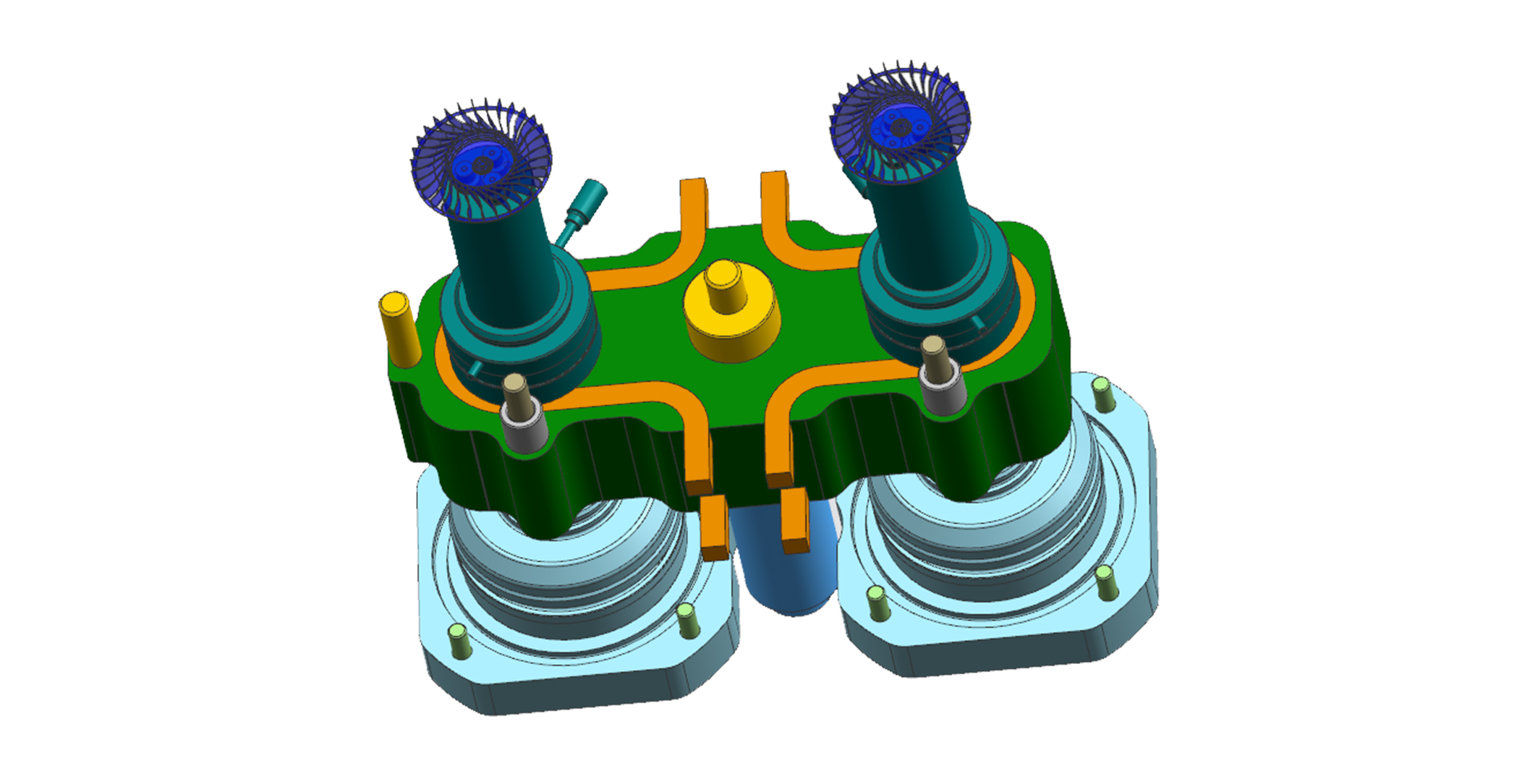

Valve Gate Hot Runner System (3-drop nozzle)

Product Parameters

Material: LCP+30%GF

Mold temp.: 100 ℃

Molding temp.: 320 - 340 ℃

Product size: Ф45 * 5.22mm

Product wall thickness: blade 0.3mm, maximum thickness 0.7mm

Product Description

1. Against the injection molding of the high-melting-point plastics, before designing the hot runner, a safe distribution of outlet for the heater of the hot runner is required and an accurate calculation of melted plastic weight in the hot runner is also required.

2. Three pins designed in a cylinder and valve designed with special structure prevent the pins from stuck, sealing synchronously.
