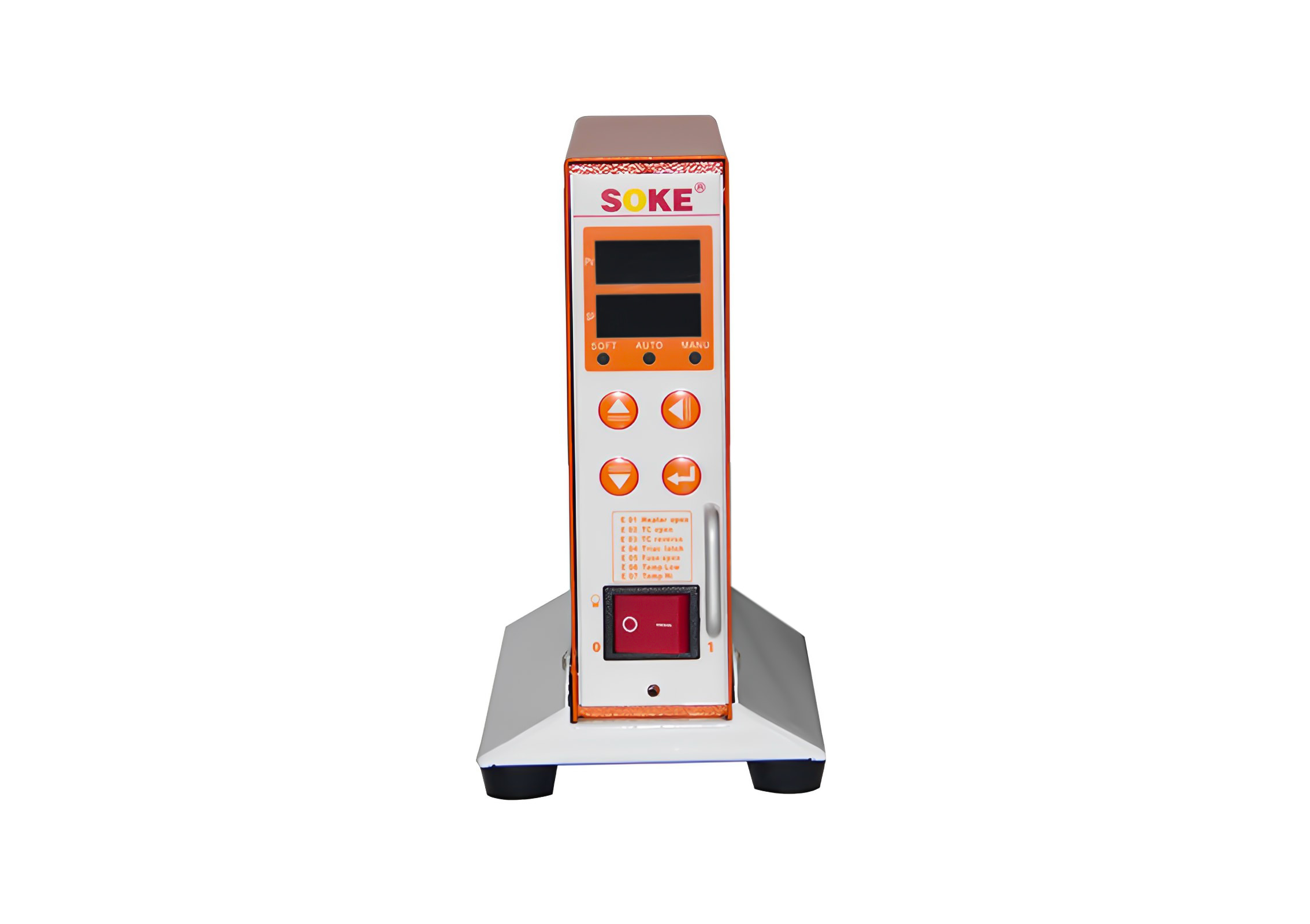

Plug-in Temperature Controller

Product Introduction

PF100 series is a temperature controller specially developed for hot runner systems by SOKE. It operates within a temperature range of 0℃ to 600℃ and boasts comprehensive functions, stability, and durability. Utilizing a computer chip as its main control unit, it incorporates multiple digital filtering circuits, automatic interference recovery, PID control, and self-tuning capabilities. The product offers high measurement precision, various safety protection functions, and strong anti-interference ability.

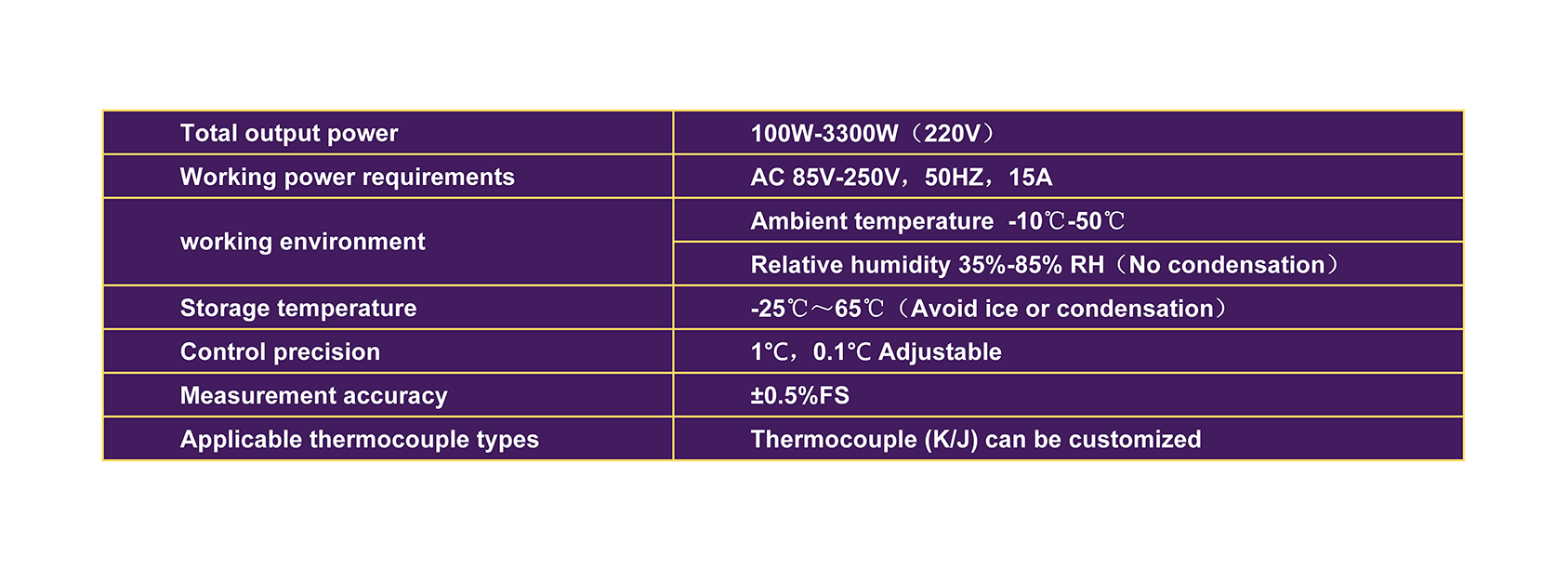

Technical indicators

Product Features

• Fuse damage detection

• Load open circuit detection

• Soft startup function upon power-on (default 3 minutes, output power 20%, adjustable)

• Over-temperature cutoff power protection (default over-temperature 25℃, adjustable)

• Thermocouple open circuit and reverse connection detection

• Power supply misconnection 380V protection function; in this case, inserting a temperature control card only triggers an alarm without functioning

• Thermocouple heating line confusion misconnection detection; upon startup, only an alarm is triggered without functioning

• Large current limitation for prolonged use of the temperature control card

• Linear voltage-controlled output to protect heating tubes

• Optional communication function

• Display of current and output ratio, with upper and lower limit alarms, and manual/automatic output modes

Please provide us with the power supply specifications of your country, and we will provide the temperature controller with electrical parameters that match.
