Door Frame Strip

Valve Gate Hydraulic Cylinder Hot Runner System

Product Parameters

Material：PA+25% GF

Mold temp.：80 ℃

Molding temp.：280 ℃

Product weight：2*310 g

Product size： 492.51*1151.42*150.75 mm

Average thickness：1.5 mm

Product Description

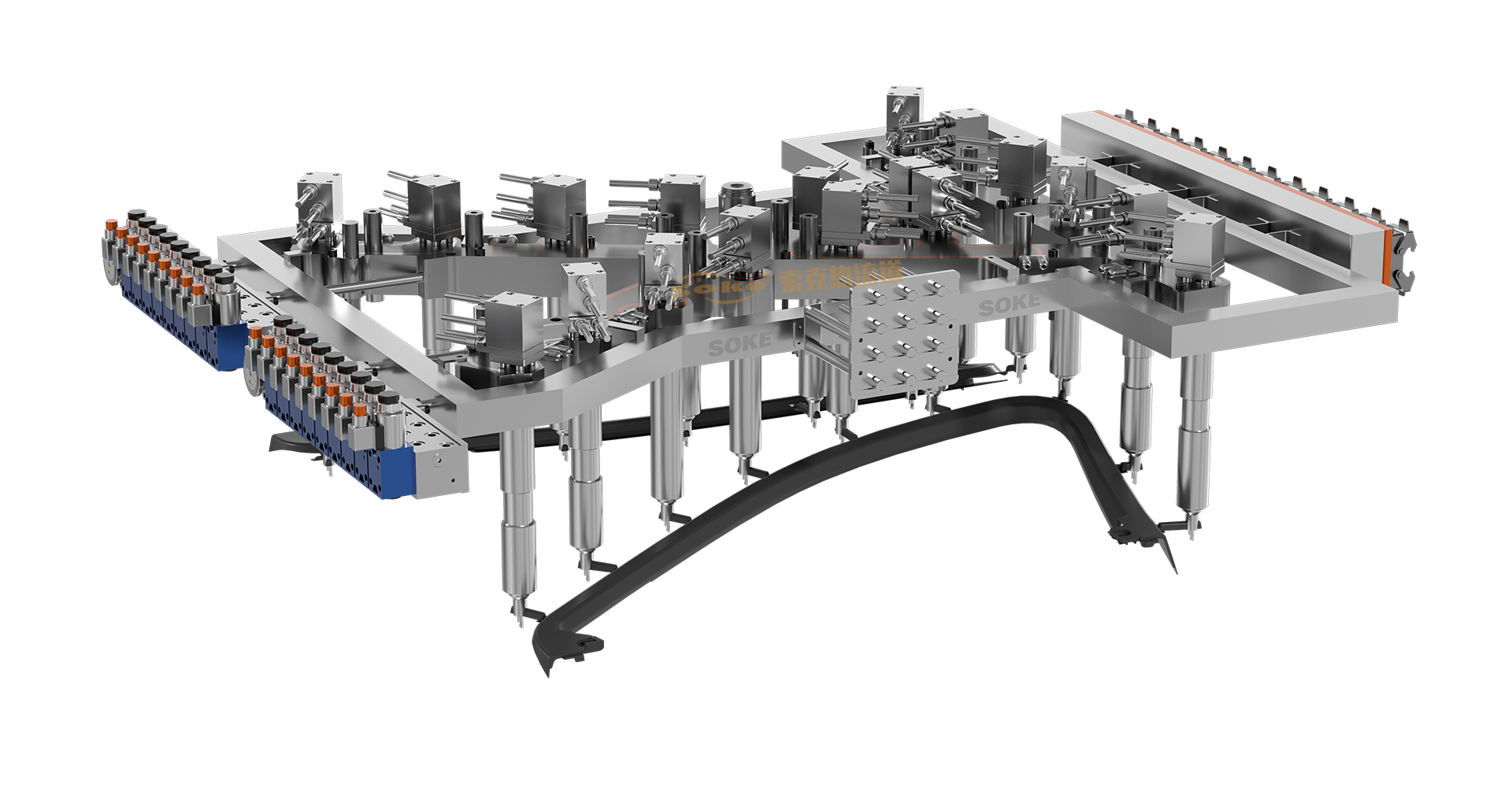

18 drops, fully assembled system. The product is slim and the location for gate is thin, on the condition of the flow length ratio restriction, we adopt 18 points integrated oil valve feeding sequentially . 2 cavities in a mold and 9 gates for each product bring a consequence of tiny deformation and stable size. Super large size of the manifold: 1250*1100mm, complicated processing but convenient installation.
