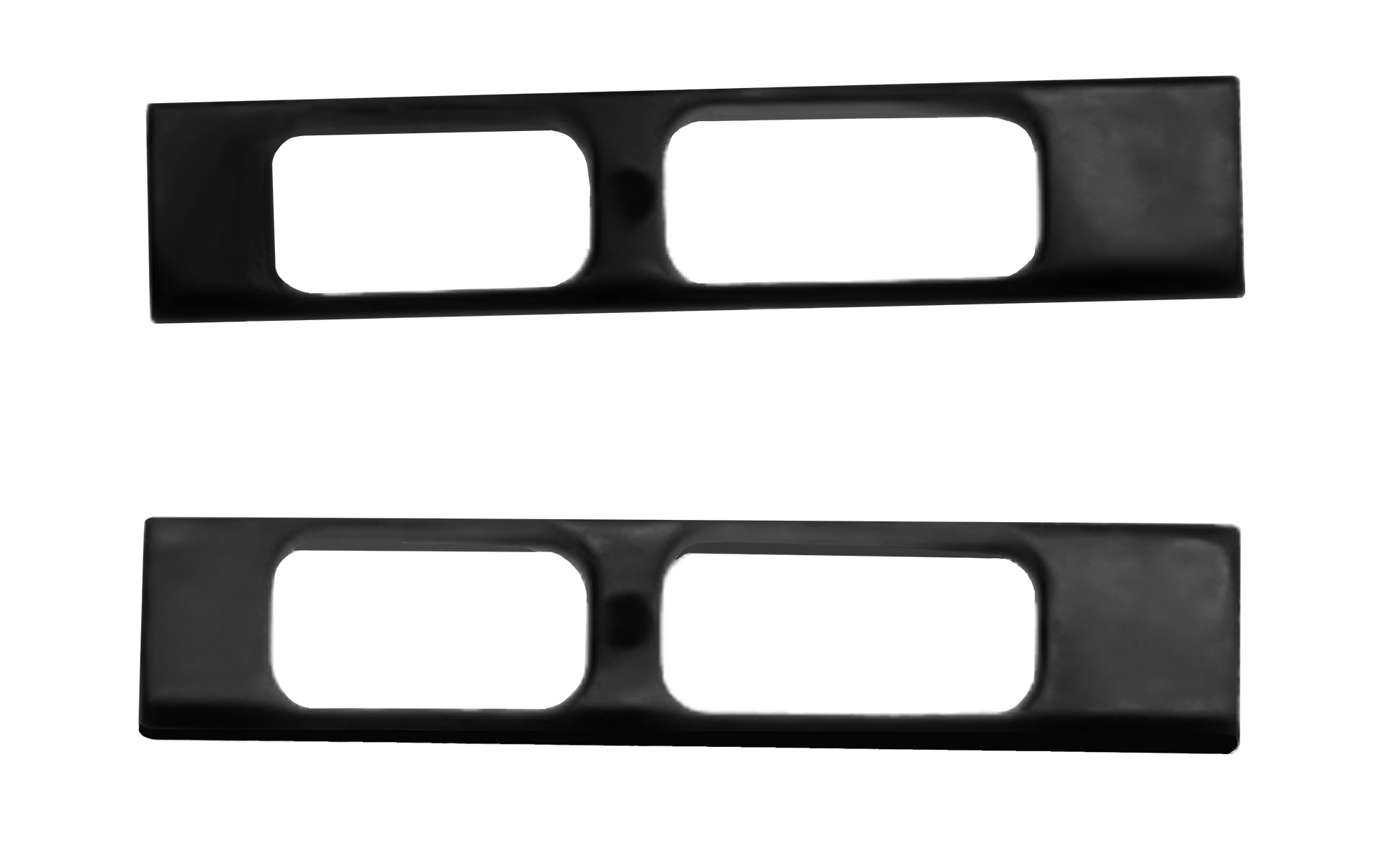

Side Pressure Buttons For Tablet

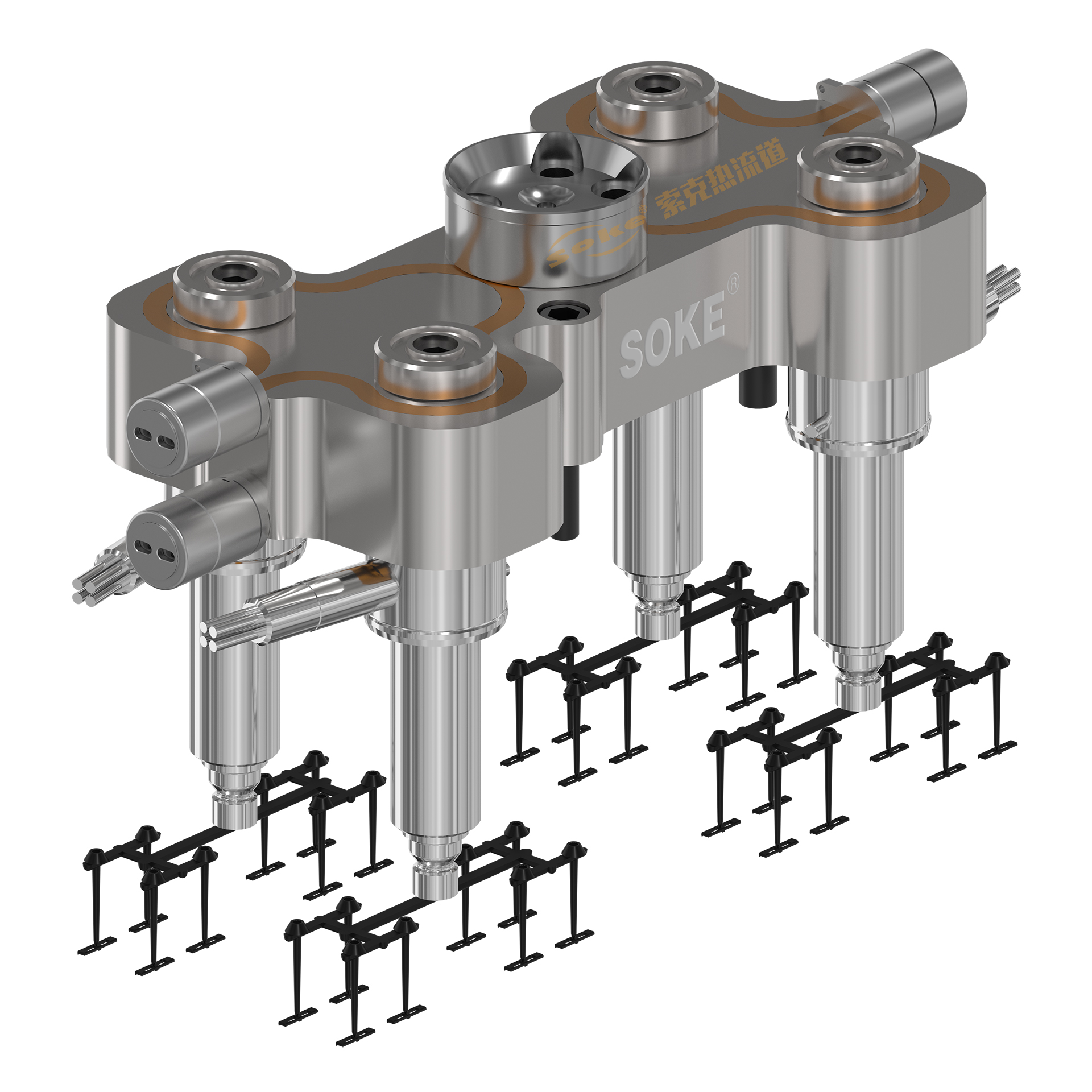

Open Hot Runner System (4 Drops)

Product Parameters

Material：PC

Molding temp.：290 ℃

Mold temp.：110 ℃

Molding cycle：10~12 S

Average  wall thickness：0.25~1.1 mm

Product Description

The plastic is UL94V-0 grade fireproof PC material, the injection pressure is up to 3200kg/cm², the hot runner system requires high pressure resistance, the conventional structure design is bound to leak glue, so the manifold runner structure is specially optimized. The hot nozzle and hot nozzle sleeve adopt seamless slope transfer, and all steel is specially treated to ensure toughness and pressure resistance.
