Electrical Connectors

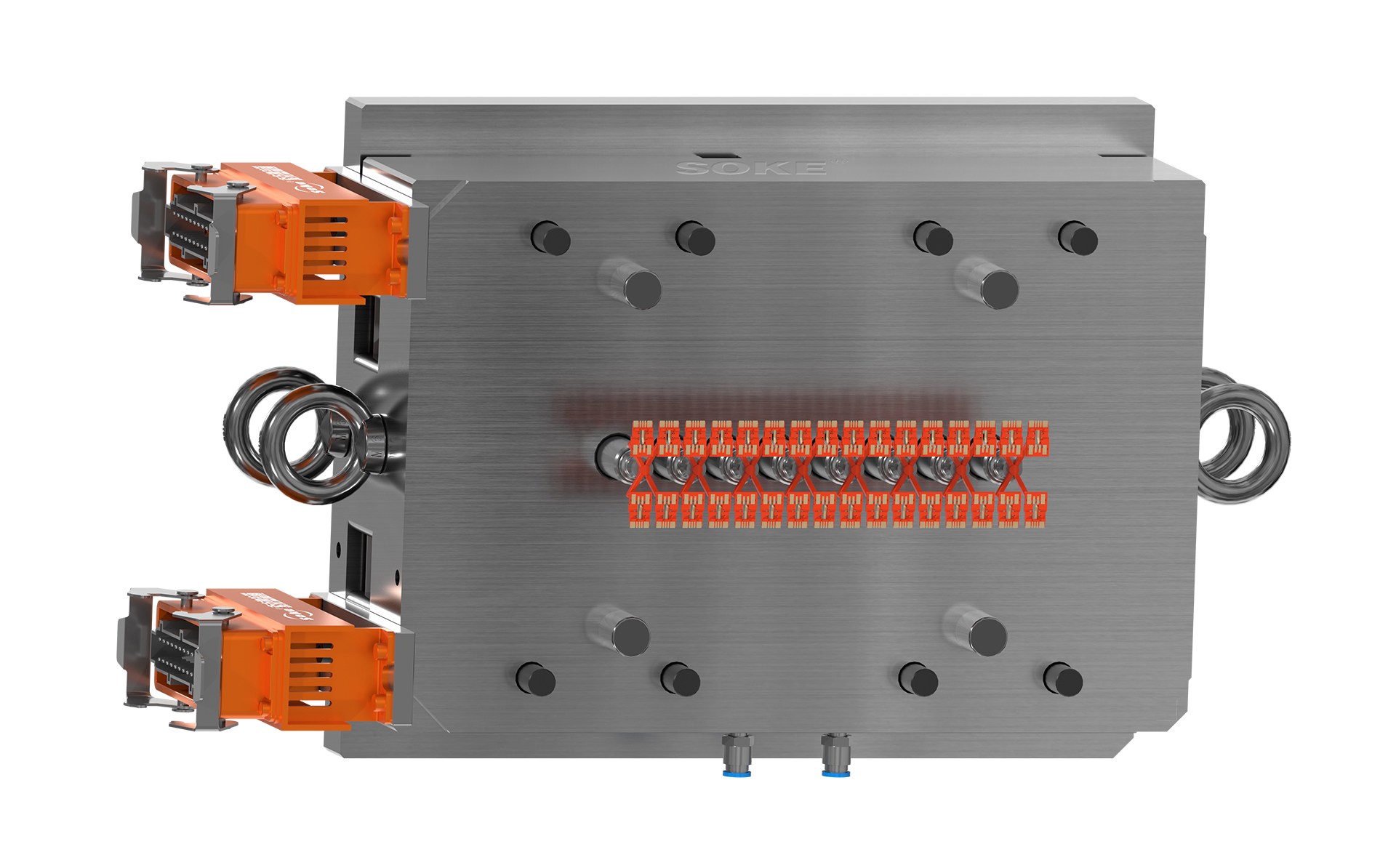

Open Hot Runner System (Hot Half With 8 Drops)

Product Parameters

Material: PA10T+30%GF

Mold temp.: 105-110 ℃

Molding temp.: 305-325 ℃

Product weight: 9 g

Product Description

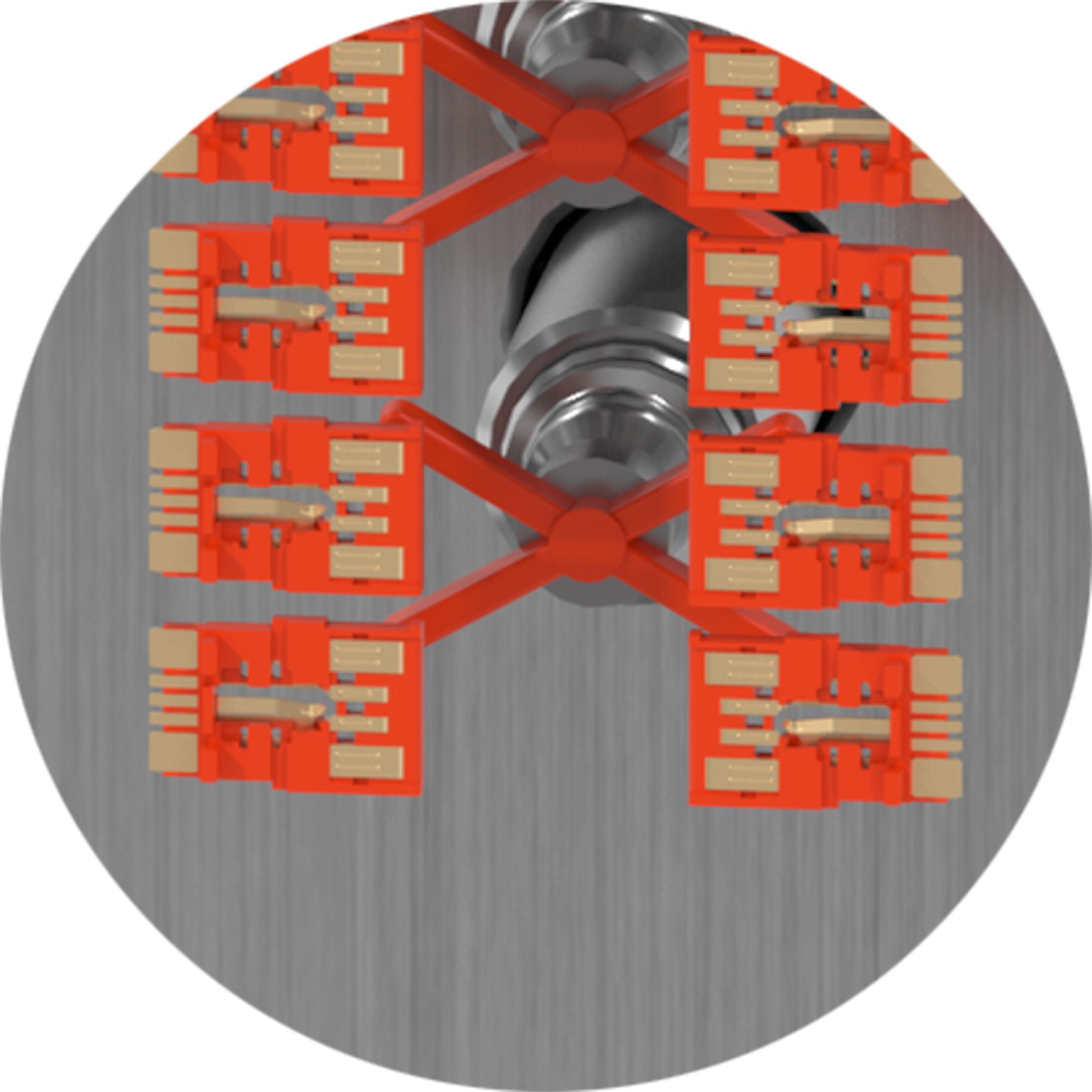

The design of mold insert adopted for the manifold guarantees the balance of heat and melted plastic flowing. As the point distance is only 26.6mm, the mini 14-nozzles equipped with the imported HOTSET heater in diameter of 1.4mm guarantee a fast and stable heating hot runner system, no drooling and stringing at the gate.  Overcome the obstacle of forming in the context of small gap and high-melting-point plastics.
